Quick Details
Mainly for crushing hard rock, ISP Series Impact Crusher is a new designed and developed machine with high efficiency. It is mainly used in secondary, tertiary and fine crushing. ISp impact crusher also has certain function of shaping the products and making sand. It is widely used to process sand and aggregate in the field of construction for water and electricity, highway, city construction.
Working Principle
Impact crusher is a kind of crushing machine that uses the plate hammer of the high speed rotating rotor to crush the materials at a high impacting crushing force. When the materials get into the action area of plate hammer, they are crushed by the hammer at a high speed. The crushed materials are thrown to the impact plate along the tangential direction to crush again. Then they are rebounded from the first impact plate to the action area of the plate hammer and enter into the second impact plate to repeat the above process. During this process, materials also crash with each other. This process will proceed repeatedly until the material are crushed to the required granularity, and then discharged from the clearance between impact plate and plate hammer.
Parameters
| Specification | ISP1005 | ISP1008 | ISP1010 |
| Compression Strength(<150MPa) | Medium Crushing | Max. Feed Size(mm) | 150 | 200 | 200 |
| Discharge Size(mm) | 40 | 40 | 40 |
| Fine Crushing | Max. Feed Size(mm) | 80 | 120 | 120 |
| Discharge Size(mm) | 25 | 25 | 25 |
| Compression Strength(>250MPa) | Medium Crushing | Max. Feed Size(mm) | 120 | 150 | 150 |
| Discharge Size(mm) | 40 | 40 | 40 |
| Fine Crushing | Max. Feed Size(mm) | 60 | 80 | 80 |
| Discharge Size(mm) | 25 | 25 | 25 |
| Capacity(t/h) | ～50 | ～70 | ～100 |
| Power(kw) | 55 | 75 | 90 |
| Dimension(mm) | 2610×1780×2125 | 2610×1910×2125 | 2610×2275×2125 |
| Specification | ISP1310 | ISP1313 | ISP1513 | ISP1515 |
| Compression Strength (<150MPa) | Medium Crushing | Max. Feed Size(mm) | 300 | 300 | 400 | 400 |
| Discharge Size(mm) | 40 | 40 | 40 | 40 |
| Fine Crushing | Max. Feed Size(mm) | 150 | 150 | 200 | 200 |
| Discharge Size(mm) | 25 | 25 | 25 | 25 |
| Compression Strength (>250MPa) | Medium Crushing | Max. Feed Size(mm) | 150 | 150 | 200 | 200 |
| Discharge Size(mm) | 40 | 40 | 40 | 40 |
| Fine Crushing | Max. Feed Size(mm) | 100 | 100 | 140 | 140 |
| Discharge Size(mm) | 25 | 25 | 25 | 25 |
| Capacity(t/h) | ～150 | ～180 | ～200 | ～230 |
| Power(kw) | 132 | 160 | 185 | 220 |
| Dimension(mm) | 3140×2080×2715 | 3140×2330×2715 | 3235×2400×2795 | 3235×2680×2795 |
Features
1. There are two different adjustable crushing cavities of ISP impact crusher, which increases the efficiency.
2. The anti-wear alloy hammer and impact plate increase the utilization and reduce the cost.
3. There are special symmetric check-doors at both sides of the frame, which are convenient to change the hammer and impact plate.
4. The discharge opening is adjustable. The final product size can be controlled. The shape of the product shows like a cube type.
5. ISP impact crusher has smart structure ,easy to maintain, energy-saving.
Application
The Impact Crusher is widely used for sand and rock production in the industry of roads, railways, reservoir, electricity power, building materials, and so on.
|
|

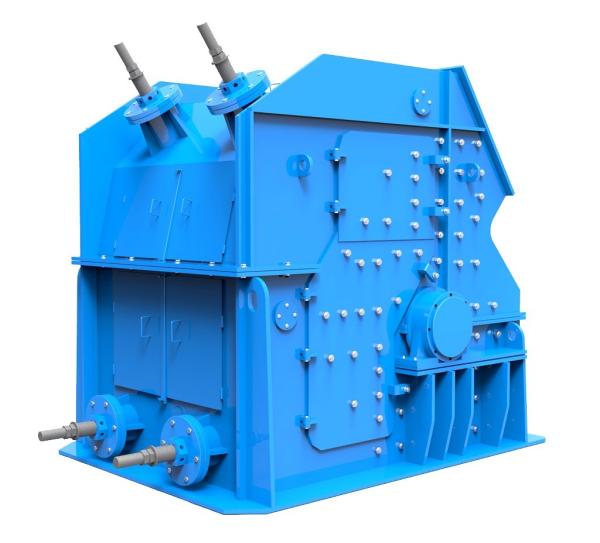

Feldspar Calcite Small Impact Crusher Machine For Sale Images
|
